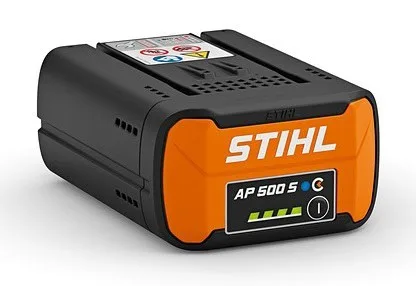

STIHL AP500S Battery

AP 500 S BATTERY: LITHIUM-ION 337 WH BATTERY

High capacity 36 V, 8.8 Ah Lithium-Ion battery. The AP 500 S is the most powerful AP battery from STIHL. Featuring power laminate technology which means it has double the number of charging cycles of a typical STIHL AP system battery with cylindrical cells. With approximately 253 charging cycles per year (253 working days, excluding weekends and bank holidays in UK) the battery will last close to 10 years without the typical capacity loss of the battery cells.

The AP 500 S has an integrated Bluetooth® interface for STIHL connected, so just like our AR L backpack batteries, it can be linked to the STIHL connected system 5 and managed like a power tool. This allows you to see the charge status via the STIHL connected App and monitor its daily usage. The battery has an integrated LED charge indicator, clearly displaying as and when the battery needs charging too.

Compatible with the AL 101, AL 301, AL 301-4 and AL 500 charger unit.

AP 500S Charging Time

• AL 500 Hi-Speed Charger - 55 mins
• AL 301 Quick Charger - 90 mins
• AL 101 Standard Charger - 355 mins

TECHNICAL DETAILS

• Battery weight 2 kg
• Rated voltage 36 V
• Energy content 337 WH 1)
• Rated cell capacity as per IEC 61960 8.8 A·h
• Rated cell capacity (as per manufacturer data) 9.36 A·h
