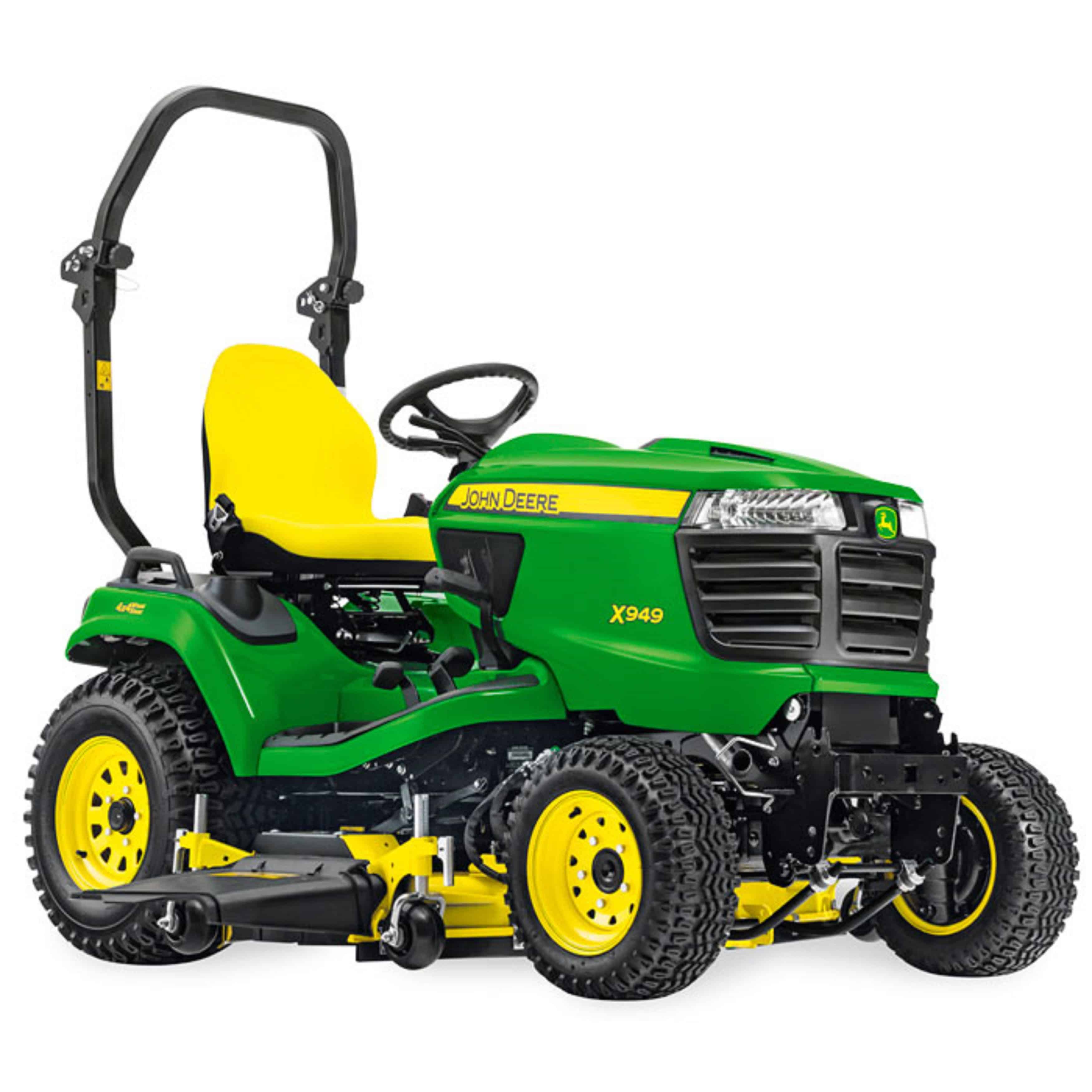

John Deere X949 Heavy Duty Diesel Lawn Tractor

Keep safe with the John Deere X949

Fitted with a rugged roll-over protection system (ROPS), you’ll keep safe at all times. Fold down the bar temporarily to help you work under trees or overgrowth.

Easy connect & disconnect

No tools are needed to connect or disconnect these mower decks – just slowly reverse the X949 until you hear the click.

Get out of tough terrain with ease

If you need better traction and a tighter turning circle out of your X900 – the X949 is for you. Featuring a heavy duty 4WD system, an effortless hydraulic 4 wheel steer system, a better gripping set of tyres and diff lock, the X949 provides gives great traction to help you out of tough terrain. Choose this agile machine as a great alternative to a zero turn.

Handle the toughest of tasks

The X900 series ride on mowers are the only X series to feature a 3 cylinder Yanmar diesel engine. Built for large home owners or for commercial users who are out everyday in the toughest of terrain, the heavy duty and robust X900 series will handle the toughest of tasks.

Premium features

All X900 series come with many premium features including hydraulic steering, hydraulic deck lift, premium high back seat, cruise control, seat suspension, large turf tyres, 2 pairs of front hydraulic spools, foldable ROPS bar, multi display LCD dash and much more!

Cut & collect solution

Both decks can be fitted with a mulch control kit or a 3 bag PowerFlow collector system for a high quality cut and collect solution. The mulch control kit allows the user to switch between mulch or discharge by the swing of a lever. You can also choose hydraulic mulch control kits that are simply operated from the dash – so you can switch between the two without leaving your seat!

John Deere X949 Technical Specification:

Engine

• Type Diesel
• Manufacturer Yanmar
• Nominal Power 24.5hp (18kW)
• Cylinders 3
• Displacement 903cm3
• Fuel Tank Capacity 19.7L

Transmission

• Type Hydrostatic
• Drive System Twin Touch Foot Pedals, 4-wheel Drive
• Max Forward Speed 8.5mph (13.7km/h)
• Max Reverse Speed 6mph (9.7km/h)
• Cruise Control Standard
• Differential Lock Standard
• Brakes Internal Wet Disc

Hydraulics

• Selective Control Valves 2 Dual SCVs
• Hydraulic Flow 21.6L/min

Power Steering

• Type 4 Front Wheel Steer
• Turning Radius 21" (53cm)

Mower Deck

• Type Stamped Steel
• PTO Engagement Electro-Hydraulic
• Deck Life/Lower Hydraulic
• Cutting Height 1-5.25" (25-133mm)
• Number of Blades 3

Seat

• Type Standard
• Optional Comfort
• Safety Reverse Implement Option (RIO)
