Product Details

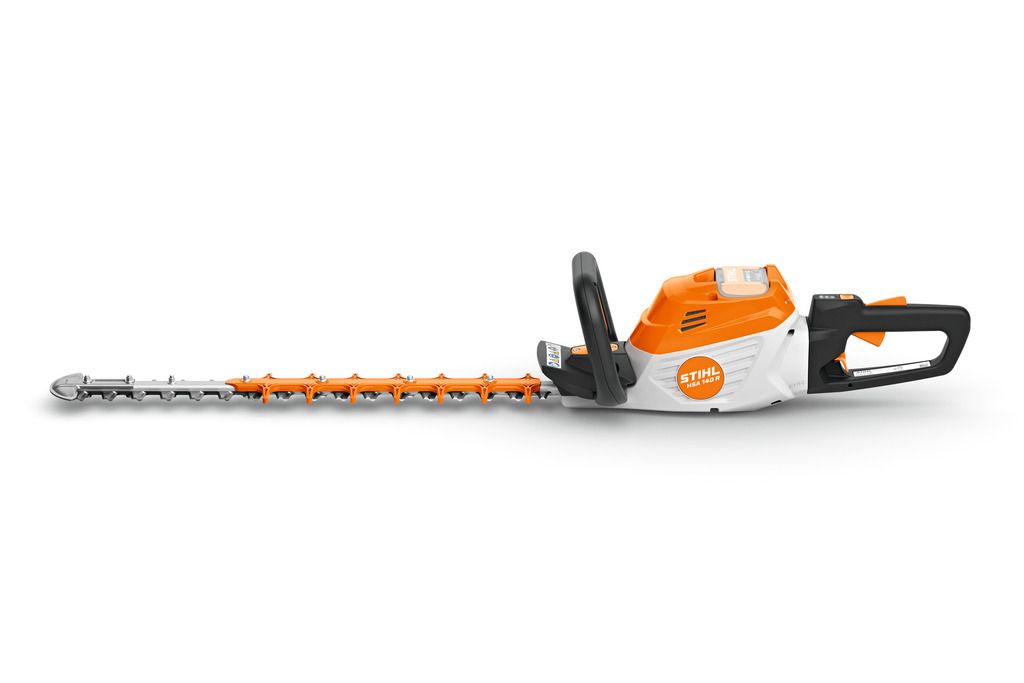

STIHL HSA 140 R Cordless Hedge Trimmer (Tool Only) – Professional Performance
Â
The STIHL HSA 140 RÂ cordless hedge trimmer is a powerful, professional-grade tool designed for heavy-duty hedge pruning and reduction work. Supplied as a tool only, it requires a compatible AP System battery and charger.
Featuring a double-sided blade with 38 mm tooth spacing, it easily cuts through thick branches and dense hedges with precision. The adjustable blade speeds (2,800–3,200 rpm) allow you to match performance to the task, while the high-efficiency EC motor delivers strong, consistent cutting power.
Built for comfort, it includes a rotating handle, ergonomic balance, and an integrated battery slot for easy handling. The anti-jam function keeps you working by reversing the blades if they get stuck.
With low noise, low vibration, and an IPX4 water-resistant rating, this hedge trimmer is ideal for professional use in all weather conditions.
 Battery and charger sold separately.
Warranty-Â (STIHLS T&C'S Apply)
- Domestic - 2 YearsÂ
- Commercial - 2 Years  Â
Â
CLICK ON THE RUNNING AND CHARGE TIMES BELOW TO CHOOSE THE RIGHT ONE FOR YOU
Â
Battery Running Times
- Â AP 200 S battery runs up to 150 mins
- AP 300 S battery runs up to 245 mins
- AP 500 S battery runs up to 290 mins
- AR 2000 L battery runs up to 880 mins
- AR3000 L battery runs up to 1320 mins
AL501 Hi-Speed Charger Charge Times
- AP 200 S battery in 45 minutes
- AP 300 S battery in 45 minutes
- AP 500 S battery in 55 minutes
- AR 2000 L backpack battery in 160 minutes
- AR 3000 L backpack battery in 230 minutes
AL301 Quick Charger Charge Times
- AP 200 S battery in 55 minutes
- AP 300 S battery in 70 minutes
- AP 500 S battery in 90 minutes
- AR 2000 L backpack battery in 290 minutes
- AR 3000 L backpack battery in 430 minutes
Â
Features
The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.
Â
Cutting Variation (R)
The R variations of the STIHL HS 82 and STIHL HS 87 are designed specifically for large volume cutting. They feature a cutting blade with wide tooth spacing and longer tooth height. The gearing allows a high cutting power at a medium stroke rate. The R variations provide the possibility of cutting thicker branches and completing clearing work faster.
Adjustable Blade-Stroke Rate

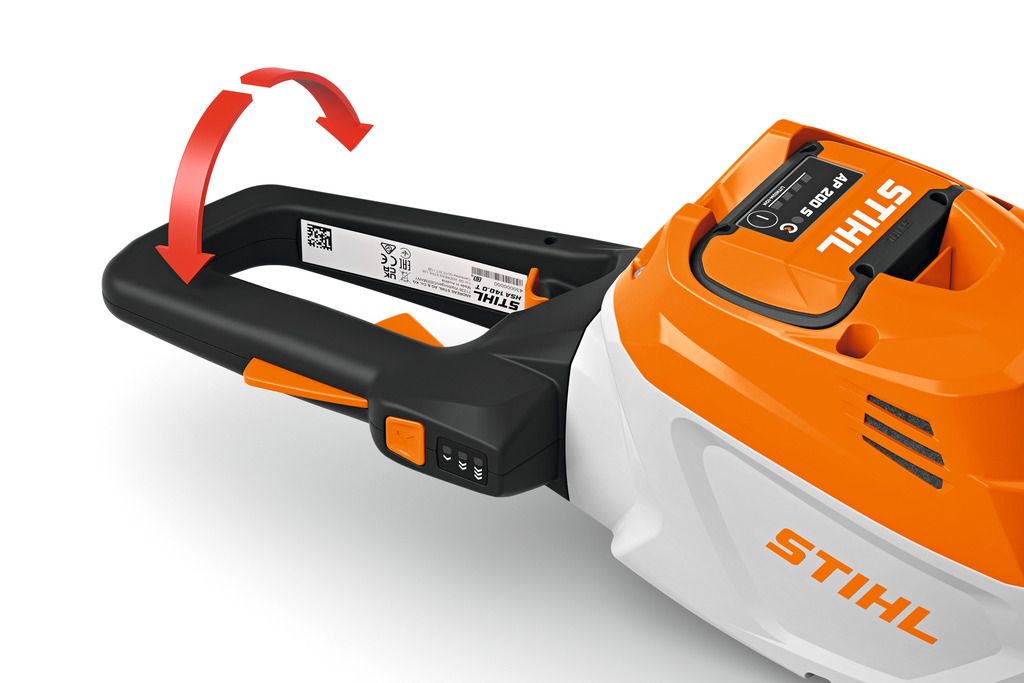

ADAPTABLE SPEED. With the 3-level adjustable blade stroke rate, you can select the right blade speed for every task. You can easily adjust the hedge trimmer using the control cockpit on the rotatable multi-function handle. As the control cockpit rotates with the handle, the switch is always within easy reach, regardless of the handle position.
Blade Scabbard
FOR SAFE TRANSPORT AND PROTECTED STORAGE. Transport and store your hedge trimmer and shrub shears safely and securely with the tailor-made blade scabbard.
Tip Protector
PREVENTS DAMAGE. The tip protector prevents damage to the blades. The tip protector also makes it easier to cut close to the ground or along walls.
Screw-On Cut Protection
REDUCES THE RISK OF INJURY. Screw-on cut protection increases your safety, for example when trimming hedges. If the cut protection tip wears out, you can easily replace it.
EC Motor
LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor enables you to work in an energy efficient manner. This engine also has a long service life.
Tool Monitoring With The Smart Connector
INTEGRATION INTO STIHL CONNECTED. The tool is compatible with the Smart Connector, meaning it can be integrated into the STIHL connected system. Once you have attached a Smart Connector to the tool, after one-time commissioning it will record the tool’s operating hours and transmit them to the STIHL connected App via Bluetooth. In addition to displaying the operational time, the app also provides an overview of all necessary maintenance, ensuring that you do not overlook important upkeep and that your tool is always in a ready-to-use condition.
STIHL Anti-Vibration System
FOR MORE PLEASANT WORK. Vibrations can occur when you put your tools through their paces, and these are particularly noticeable in the grip area. The buffer and spring elements of the STIHL anti-vibration system reduce the transmission of engine vibrations to the handle area and therefore to your body. The result is that your tool is more comfortable to hold and your work is much less tiring.
Constant PowerÂ
When using other brands of battery tools, the performance can sometimes decrease during work as the battery discharges. This isn't the case with STIHL battery-powered tools. Thanks to the intelligent electronics, your tool will work with consistently high power across the entire battery charge, until there is no energy left in the battery.
IPX4 Certified
SPLASHWATER PROTECTION. The AP 200 S is IPX4 certified thanks to the encapsulated electronics and sealing of each individual cell. It means that the battery is protected against splashwater from all sides and can be used in rainy conditions.
Energy Recovery
When the throttle is released, energy is recovered and fed back into the battery - which extends the battery life during use.
Â
Technical Specs
- Rated voltage 36 V
- Max. voltage 40 V
- Power 0.46 kWÂ
- Battery system AP
- Recommended battery AP 200 S
- Stroke rate 2600 r/min
- Stroke rate Level 2 3000 r/min
- Stroke rate Level 3 3400 r/min
- Device weight without battery 4.4 / 4.7 kgÂ
- Cutter blade length 60 / 75 cm
- Tooth spacing 38 mm
- Device length with blade 125 / 137 cm
- Sound pressure level 77.0 / 79.0 dB(A)Â
- Sound power level 85.0 / 87.0 dB(A)Â
- Vibration level left 2.7 / 3.0 m/s²Â
- Vibration level right 2.3 / 2.5 m/s²Â
- IP Rating IPX4
